SCOOBY DOO GANG

CHESS MACHINE


Architecture

Original Architecture Design

  • 68HC11 to control the HCI
  • 68HC11 to run the chess software
  • Shared memory by both the FPGA and the 68HC11s
  • LCD panel for HCI



Final Architecture Design

  • 68HC11 to run the chess software and interface with the PC
  • Memory mapped I/O
  • Visual Basic GUI for HCI

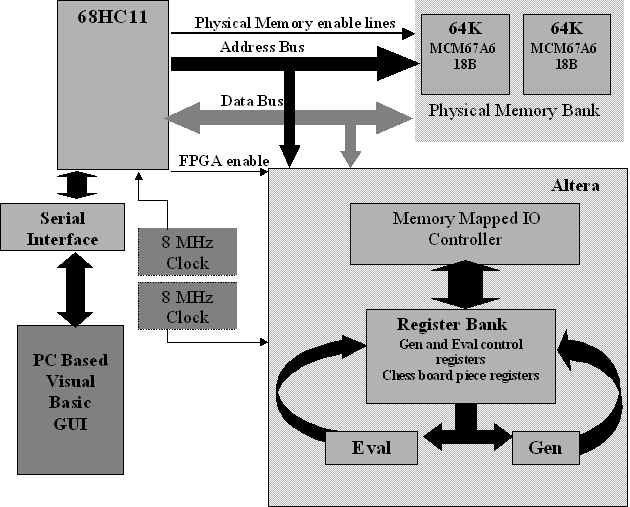

Scooby Doo Gang Chess Machine Block Diagram

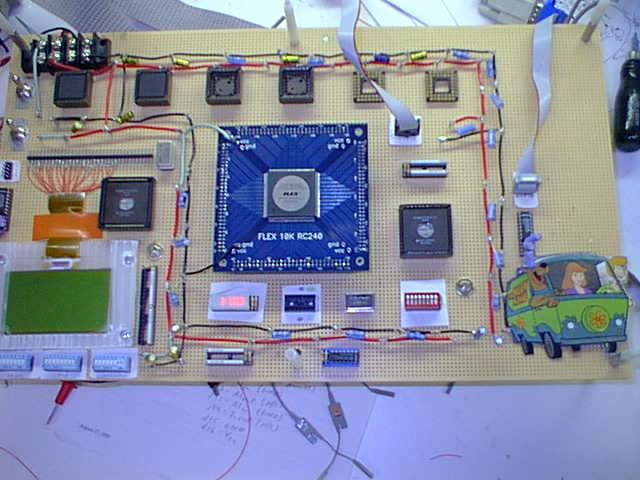

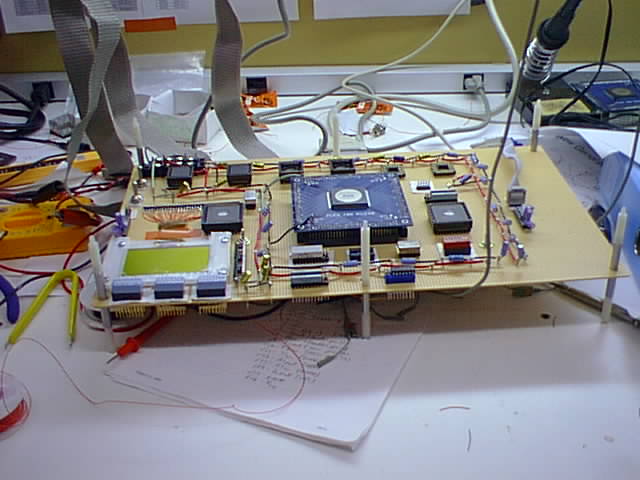

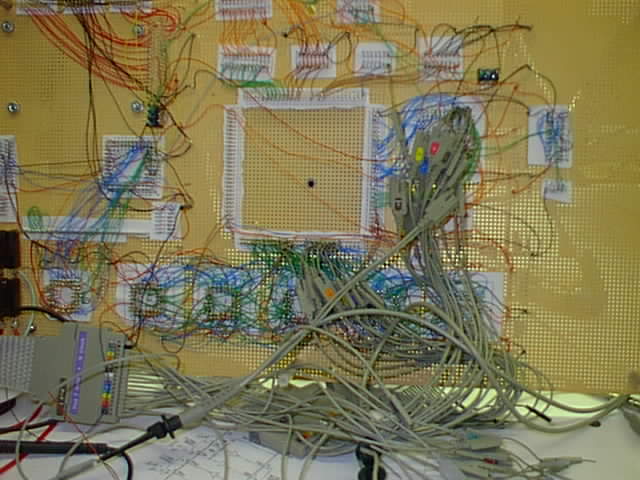

Pictures of the Board
